ZONEMIST DELIVERY SYSTEM
ZONEMIST is an innovative smart building technology system.
ZONEMIST utilizes our high pressure pump, strategically positioned network of fluid routed delivery lines attached to our atomizing dry fog misting nozzles which exit and are affixed to the room's air supply vents.
Benefits, time & cost savings solutions include odor control, pure humidification, ECO-H2O non-toxic surface(s) disinfectant*, natural essential oil room freshener scent and/or oxygen!
Zonemist utilizes your HVAC system.
Seamlessly installed in new construction and existing buildings with no demolition!
Zonemist fluid delivery lines are completely independent of the buildings HVAC system and NEVER dampen, humidify or moisten the interior lining walls of your ductwork or HVAC system.
Sanitize Hundreds of thousands of sq. ft. coverage in-minutes!
* Please Note: Disinfectant applications Must be administered in empty rooms and/or after hours with no building occupants
ZONEMIST SYSTEMS
Designed to meet any size building square footage & specific functioning requirement
REVERSE OSMOSIS PURE WATER SUPPLY
MULTIPLE FLUID STORAGE TANKS
SMALL- MEDIUM - LARGE- BUILDING ZONEMIST SYSTEMS FLUID PUMPS
FLUID TRANSPORT, SUPPLY LINES & ROUTING HARDWARE
DRY FOG ATOMIZING NOZZLES
SYSTEMS CONTROL PANEL & HUMIDISTAT
OPTIONAL SYSTEM TASK SENSORS
OPTIONAL FULL SMART BUILDING SYSTEMS OPERATION & INTEGRATED SYSTEMS
ZONEMIST PATENTED FLUID DISPERSANT ZONES

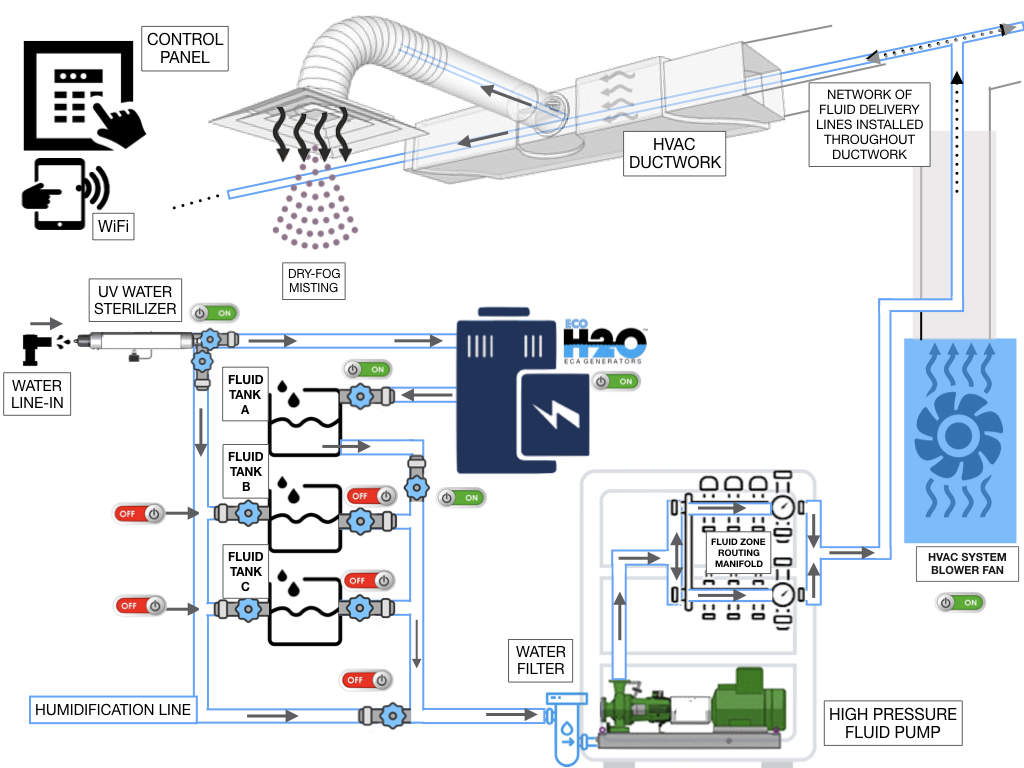

ZONEMIST PATENTED FLUID DELIVERY NETWORK
SYSTEMS REQUIREMENTS
System footprint: 50 sq. ft. for smaller systems up to 50 -100 + sq. ft. for larger systems (pump, generator, manifold, controller and fluid tanks)
Small System Electrical outlet: 110 volt Large System 3 Phase 240 volt
Ground fault circuit
Four plugs and be at least 20 amps.
Water line with reverse osmosis “RO”
Access to a drain
(within system area and/or close proximity)
System area with ethernet jack accessible Smart Building Systems Only
ZONEMIST SYSTEM COMPONENTS

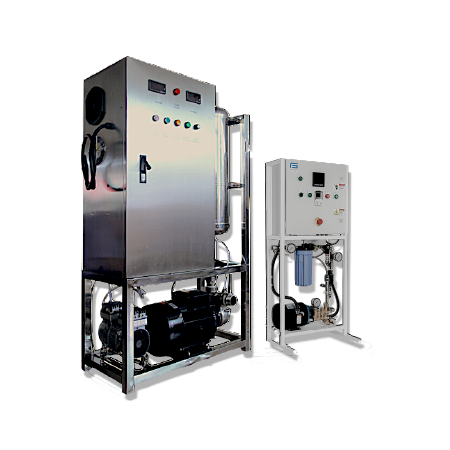

High Pressure Fluid Pumps

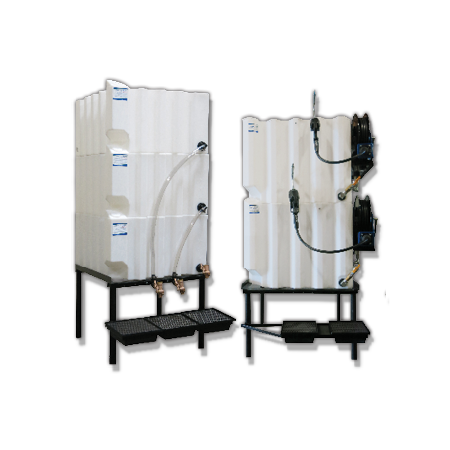

Fluid Storage Tanks
UV Water Sanitizer

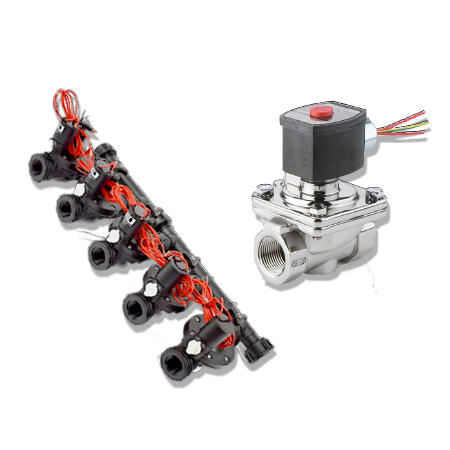

Digital Zone Manifold & Valves
Control Panel

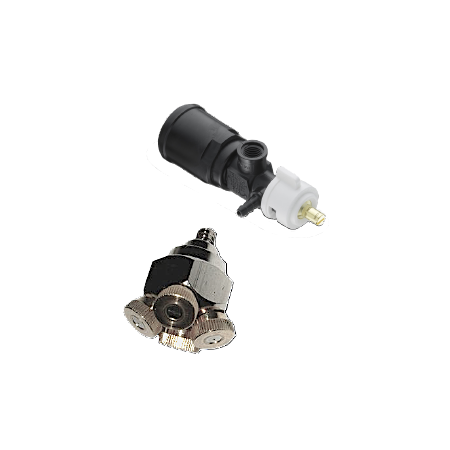

Dry-Fog Atomizing Nozzles

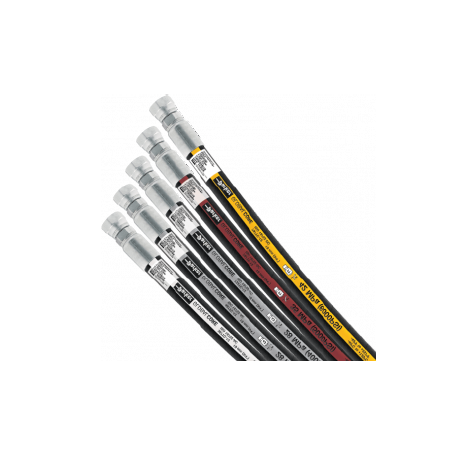

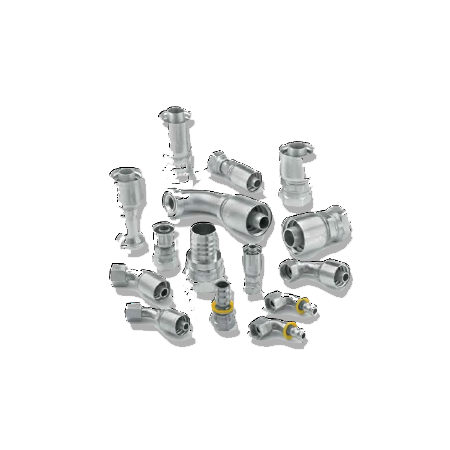

High Pressure Lines Hardware
